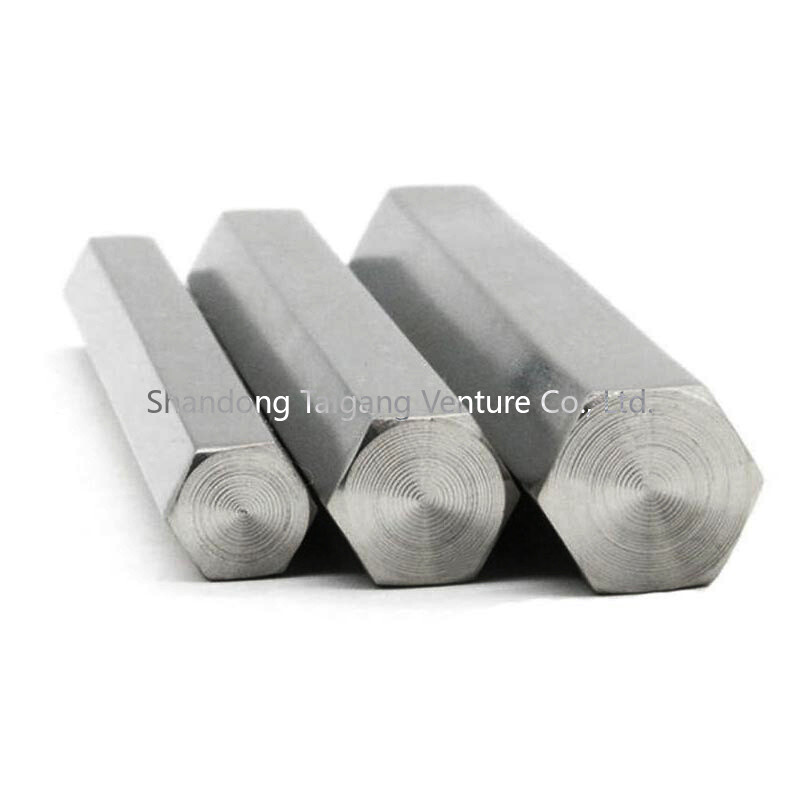

317L Stainless Steel Bar

The chemical composition of 317L stainless steel bars leads to the unique properties and characteristics. This type of stainless steel is composed of a combination of elements such as chromium, nickel, molybdenum, and carbon. Chromium is the most substantial component of 317L stainless steel and makes for its exceptional corrosion resistance. It helps form a protective layer on the metal surface, preventing rust and staining. Molybdenum is associated with better resistance to pitting corrosion from chloride solutions commonly found in harsh environments such as seawater or chemical processing plants. Carbon content helps increase hardness and strength. 317L stainless steel bars perform better than traditional austenitic grades when used in high-temperature, corrosive environments because of the precise balance between these elements.

Product Description

Product name	Stainless Steel Bar Rod
Material	301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202,321, 329, 347, 347H 201, 202, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc.
Specifications	Round bar	Diameter:1mm~500mm
	Square bar	Size: 1mm1mm~800mm800mm
	Hexagonal bar	Size: 2mm~100mm
Length	2m, 5.8m, 6m, or as required.
Surface	Black, peeled, polishing, bright, sand blast, hair line, etc.
MOQ	ASTM A479,ASTM A276,ASTM A484, ASTM A582,ASME SA276, ASME SA484, GB/T1220, GB4226, etc.
Shipment Time	Within 7-15 workdays after receiving deposit or L/C
Export Packing	Standard seaworthy export packing or according to the customers' request
Capacity	25000 Ton/Tons per Month

Grade	Compositionnominal wt%	Elongation %	Hardness
301 Annealed 1/4H 1/2H FH	C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1	40	95 Rb
302	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	40	92 Rb
303	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	30-50	92 Rb
304	C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .10	40	92 Rb
304L	C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1	40	92 Rb
305	C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13,	40	88 Rb
309/309S	Type 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08, Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal	49/ 44.6	-
310L	Mn 1.10, Cr 24.5, Ni 20.5 (nominal)	40	95 Rb
310 310S	310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2, P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance	45/42/6	-
316	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal	40	95 Rb
316L	C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal	54	95 Rb
316Ti	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe	248	76 Rb
317	Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal	35	95 Rb
321	C .09, Mn 2.0, P .045, S .03, Si .75, Cr 17-18, Ni 9-12, Ti .7, N .1 Fe Bal	40	95 Rb
334	C 0.03, Mn 1.0, P .02, S .015, Si .75, Cr 19-19.5 Ni 19-20, Ti .4, Al .4, Cu .2 Fe Bal	40	82 Rb
347	C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Fe Bal	40	95 Rb
348	C .08, Mn 2.0, P .045, S .03, Si.75, Cr 17-19, ni 9-13, Cb+Ta 1.0, Ta .10, Co .2, Fe Bal	40	92 Rb
410	C .15, Mn 1.0, Si 1.0, Cr 11.5-13.5, Ni 0.5, S .03, Ph .04	34	38-45 Rc
416	C 0.15, Mn 1.25, Si 1.0, Cr 12-14, P 0.06, S 0.15, Mo 0.60, Fe Balance	15-30
420	C .15-.40, Mn 1.0, Si 1.0, Cr 12-14, Ni 0.5, S .03, Ph .04	20	57-60 Rc
440A	C .60-.75, Mn 1.0, Si 1.0, Cr 16-18, Mo .75, Ni .50, S.03, Ph .04	20	57-60 Rc
440C	Cr 16.5, C 1.0, Si 1.0	-	58 Rc
13-8 Mo	Cr 13, Ni 8, Mo 2, Al, low C, balance Fe	18	33 Rc
15-5PH	Cr 15, Ni 5, Cu 3, Cb, balance Fe	10	33 Rc
15-7Mo	Cr 15, Ni 7, Mo 2, AL 1, balance Fe	30	88 Rb
17-4PH	Cr 17, Ni 4,Cu 3, Cb, balance Fe	8	33 Rc

Stainless steel standard steel grade comparison table and density table

China	Japan	USA	South Korea	European Union	Australia	Taiwan, China	Densityt/m3
GB/T20878	JIS	ASTM	KS	BSEN	AS	CNS
12Cr13	SUS403	403	STS403	-	403	403	7.75
20Cr13	SUS420J1	420	STS420J1	1.4021	420	420	7.75
30Cr13	SUS420J2	-	STS420J2	1.4028	420J2	420J2	7.75
10Cr17	SUS430	430	STS430	1.4016	430	430	7.70
68Cr17	SUS440A	440A	STS440A	-	440A	440A	7.70
06Cr19Ni10	SUS304	304	STS304	1.4301	304	304	7.93
022Cr19Ni10	SUS304L	304L	STS304L	1.4306	304L	304L	7.93
06Cr17Ni12Mo2	SUS316	316	STS316	1.4401	316	316	7.98
022Cr17Ni12Mo2	SUS316L	316L	STS316L	1.4404	316L	316L	7.98
06Cr18Ni11Ti	SUS321	321	STS321	1.4541	321	321	7.93
06Cr18Ni11Nb	SUS347	347	STS347	1.455	347	347	7.98

Product Display

Company Profile

Shandong Taigang Venture Co., Ltd. is a comprehensive steel production and trading company with strong strength. Its main businesses include production, processing, distribution, logistics and import and export of steel products. Our main products are various carbon steel plates, various stainless steel plates, various metal pipes and metal coil products, etc.
The company has cooperated with German VDM, UTP, SIEIN, German Aleris, Swedish OUTOKUMPU, SANDVIK, ESAB, SSAB, American SMC, HAYANES, ATI, Rolled, LINCOLN, ARCOS, Arconic, Kaiser, French UGITECH, Japanese Yakin, Nippon Steel Sumitomo Metal, Kobe Steel...

Factory Show

FAQ

1. Q: What is the advantage of your company?
A:(1) Good quality and reasonable price.
(2) Large inventory, effective after-sales service.
(3) We choose professional standard export seaworthy packaging, which is suitable for different transportation.
(4) Trial orders can be shipped within one week.
(5) The manufacturing process of each product will be supervised by the responsible QC to ensure that the product quality is up to standard.
2. Q: Do you accept third party inspection?
A: Yes, we absolutely accept it. We warmly welcome you or third parties to visit our factory.
3. Q: How do you want us to cooperate with you?
A: Please tell us your needs, then we can provide you with detailed marketing surveys and product solutions.
4. Q: What's the delivery time?
A: Generally it is 7 to 15 days. Once you confirm the product specification and quantity, we will further negotiate the delivery time with you.
5. Q: Can you provide customized service?
A: Of course, we can provide various product customization service solutions to meet your needs.
