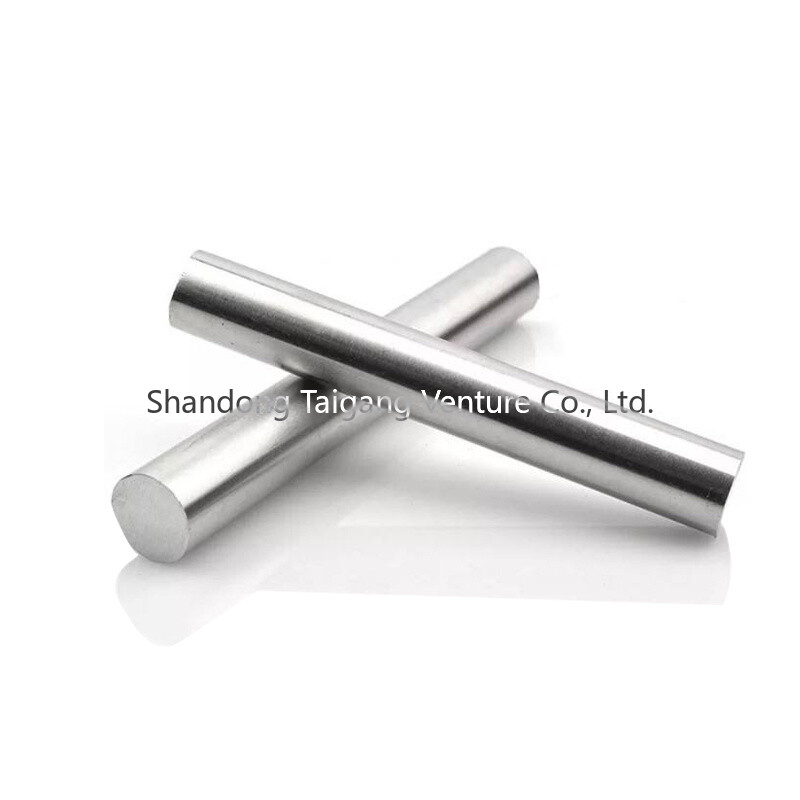

304L Stainless Steel Rod

304L Stainless steel bars are used where welding is involved as a variant of 304 stainless steel bars. The lower carbon content greatly reduces the precipitation of carbides in the heat-affected zone near the weld, which in some cases is likely to lead to intergranular corrosion of stainless steel. Basically, there is no need to anneal the welded joint before using the metal formwork made of 304L, saving time and effort. In fact, 304 and 304L stainless steel bars can be used for many of the same applications. These differences are often so small that one is not considered more useful than the other. 304L stainless steel bars are commonly used as manufacturing parts for food processing equipment, building materials, automotive parts and other fields.

Product Description

Product name	Stainless Steel Bar Rod
Material	301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202,321, 329, 347, 347H 201, 202, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc.
Specifications	Round bar	Diameter:1mm~500mm
	Square bar	Size: 1mm1mm~800mm800mm
	Hexagonal bar	Size: 2mm~100mm
Length	2m, 5.8m, 6m, or as required.
Surface	Black, peeled, polishing, bright, sand blast, hair line, etc.
Standard	ASTM A479,ASTM A276,ASTM A484, ASTM A582,ASME SA276, ASME SA484, GB/T1220, GB4226, etc.
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 7-15 workdays after receiving deposit or L/C
Export Packing	Standard seaworthy export packing or according to the customers' request
Capacity	25000 Ton/Tons per Month

Grade	Compositionnominal wt%	Elongation %	Hardness
301 Annealed 1/4H 1/2H FH	C .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .1	40	95 Rb
302	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	40	92 Rb
303	C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .1	30-50	92 Rb
304	C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .10	40	92 Rb
304L	C .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .1	40	92 Rb
305	C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13,	40	88Rb
309/309S	Type 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08, Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal	49/ 44.6	-
310L	Mn 1.10, Cr 24.5, Ni 20.5 (nominal)	40	95Rb
310 310S	310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2, P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance	45/42/6	-
316	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal	40	95Rb
316L	C .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal	54	95Rb
316Ti	C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe	248	76Rb
317	Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal	35	95Rb
321	C .09, Mn 2.0, P .045, S .03, Si .75, Cr 17-18, Ni 9-12, Ti .7, N .1 Fe Bal	40	95Rb
334	C 0.03, Mn 1.0, P .02, S .015, Si .75, Cr 19-19.5 Ni 19-20, Ti .4, Al .4, Cu .2 Fe Bal	40	82 Rb
347	C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Fe Bal	40	95Rb
348	C .08, Mn 2.0, P .045, S .03, Si.75, Cr 17-19, ni 9-13, Cb+Ta 1.0, Ta .10, Co .2, Fe Bal	40	92Rb
410	C .15, Mn 1.0, Si 1.0, Cr 11.5-13.5, Ni 0.5, S .03, Ph .04	34	38-45 Rc
416	C 0.15, Mn 1.25, Si 1.0, Cr 12-14, P 0.06, S 0.15, Mo 0.60, Fe Balance	15-30
420	C .15-.40, Mn 1.0, Si 1.0, Cr 12-14, Ni 0.5, S .03, Ph .04	15-30	53-57 Rc
440A	C .60-.75, Mn 1.0, Si 1.0, Cr 16-18, Mo .75, Ni .50, S.03, Ph .04	20	57-60Rc
440C	Cr 16.5, C 1.0, Si 1.0	-	58 Rc
13-8 Mo	Cr 13, Ni 8, Mo 2, Al, low C, balance Fe	18	33 Rc
15-5PH	Cr 15, Ni 5, Cu 3, Cb, balance Fe	10	33 Rc
15-7Mo	Cr 15, Ni 7, Mo 2, AL 1, balance Fe	30	88 Rb
17-4PH	Cr 17, Ni 4,Cu 3, Cb, balance Fe	8	33 Rc

Stainless steel standard steel grade comparison table and density table

China	Japan	USA	South Korea	European Union	Australia	Taiwan, China	Densityt/m3
GB/T20878	JIS	ASTM	KS	BSEN	AS	CNS
12Cr13	SUS403	403	STS403	—	403	403	7.75
20Cr13	SUS420J1	420	STS420J1	1.4021	420	420J1	7.75
30Cr13	SUS420J2	—	STS420J2	1.4028	420J2	420J2	7.75
10Cr17	SUS430	430	STS430	1.4016	430	430	7.70
68Cr17	SUS440A	440A	STS440A	—	440A	440A	7.70
06Cr19Ni10	SUS304	304	STS304	1.4301	304	304	7.93
022Cr19Ni10	SUS304L	304L	STS304L	1.4306	304L	304L	7.93
06Cr17Ni12Mo2	SUS316	316	STS316	1.4401	316	316	7.98
022Cr17Ni12Mo2	SUS316L	316L	STS316L	1.4404	316L	316L	7.98
06Cr18Ni11Ti	SUS321	321	STS321	1.4541	321	321	7.93
06Cr18Ni11Nb	SUS347	347	STS347	1.455	347	347	7.98

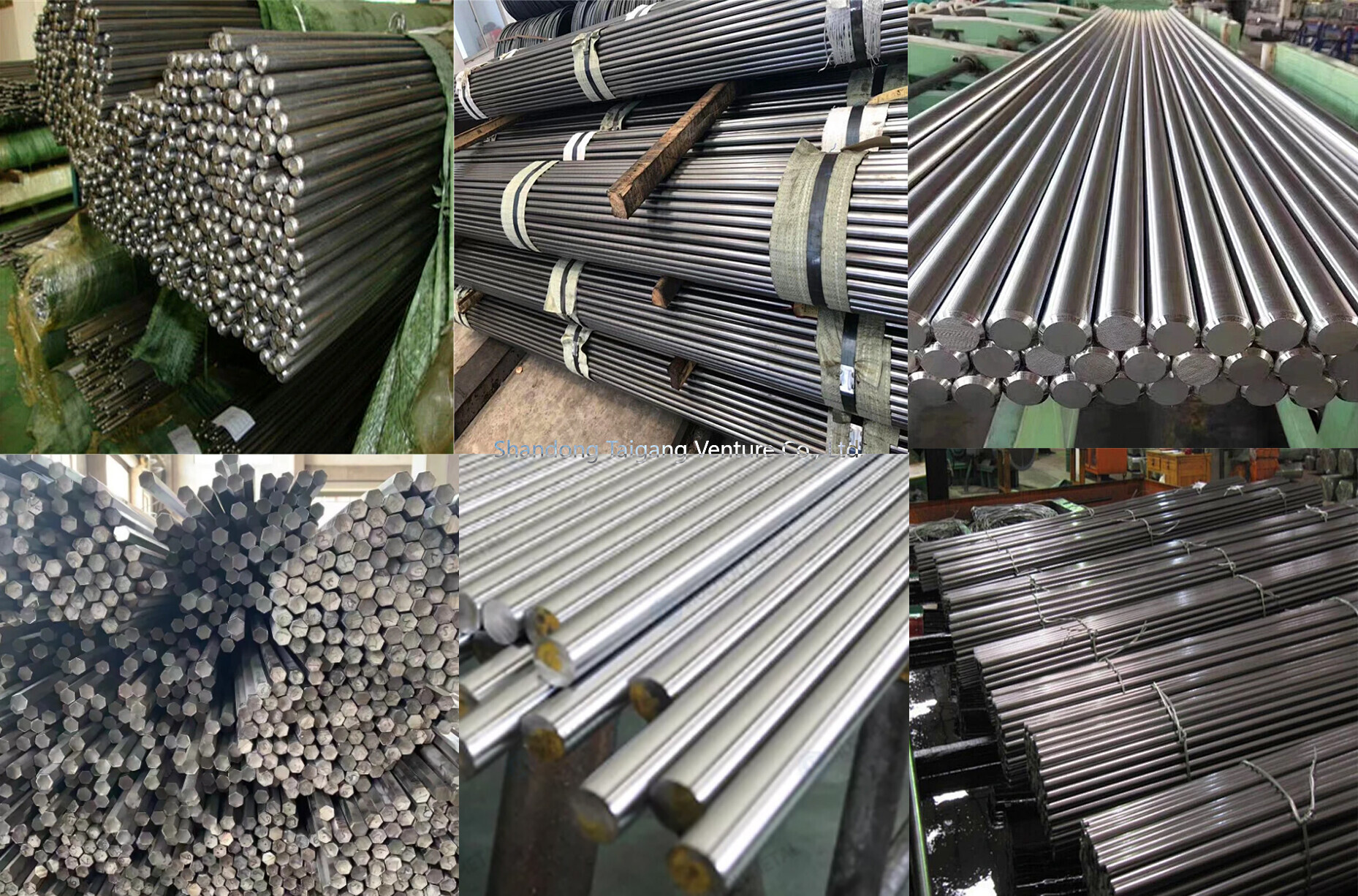

Product Display

Company Profile

Shandong Taigang Venture Co., Ltd. is a comprehensive steel production and trading company with strong strength. Its main businesses include production, processing, distribution, logistics and import and export of steel products. Our main products are various carbon steel plates, various stainless steel plates, various metal pipes and metal coil products, etc.
The company has cooperated with German VDM, UTP, SIEIN, German Aleris, Swedish OUTOKUMPU, SANDVIK, ESAB, SSAB, American SMC, HAYANES, ATI, Rolled, LINCOLN, ARCOS, Arconic, Kaiser, French UGITECH, Japanese Yakin, Nippon Steel Sumitomo Metal, Kobe Steel...
